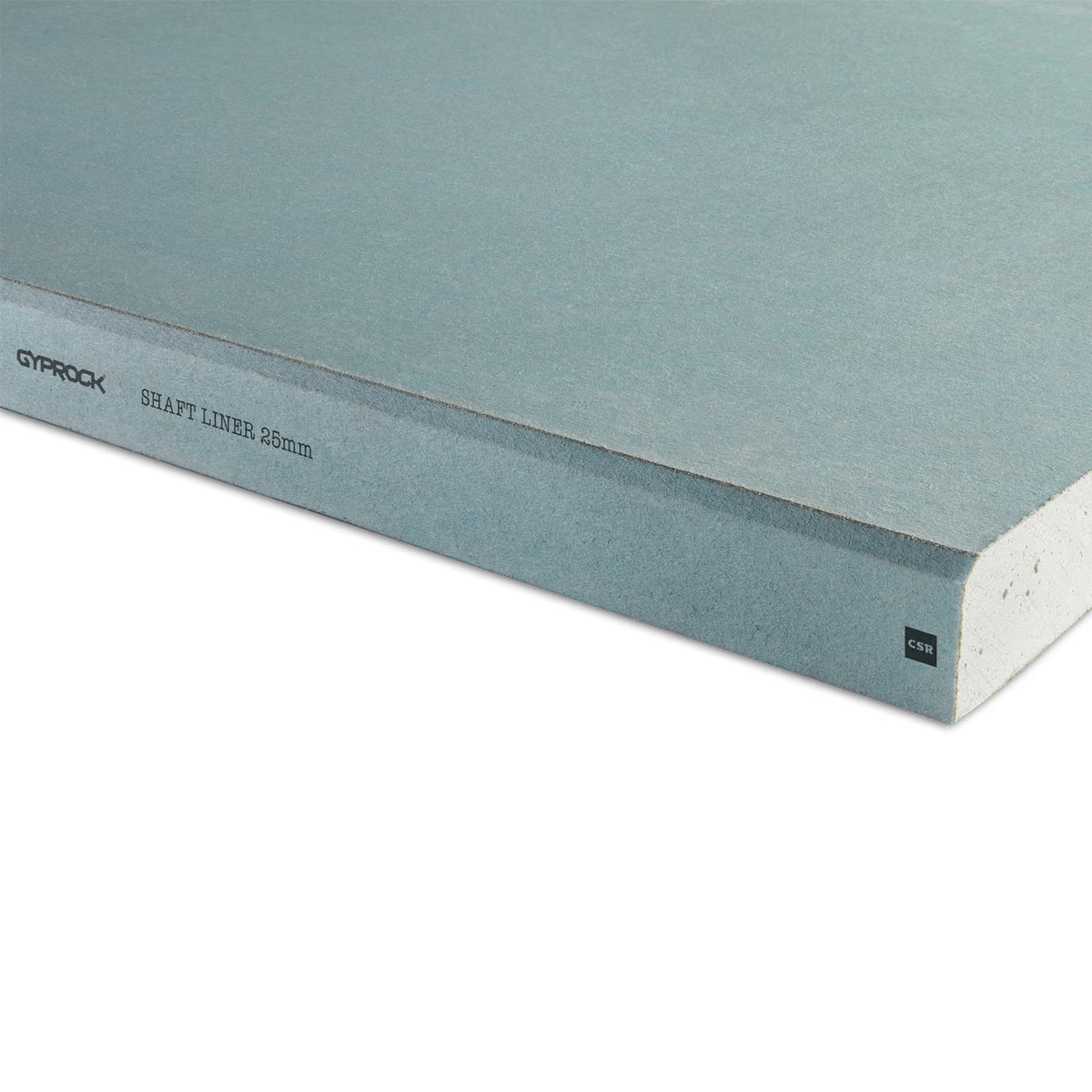

Gyprock Shaft Liner MP provides enhanced protection against mould growth for extra peace of mind during the early stages of construction.

Shaft Liner MP, like standard Shaft Liner panel has a glass fibre-reinforced core encased in a heavy duty linerboard. This enables it to resist fire and make it ideal for use as part of a fire rated wall or ceiling system. These panels also offer exceptional acoustic insulation properties and are used in Gyprock commercial wall and ceiling systems where a high fire rating or high acoustic performance is specified. New Shaft Liner MP panel is manufactured with a powerful but gentle antifungal agent that permeates the plasterboard core, as well as the face and back paper of the board, providing enhanced protection against the possibility of mould growth during the early stages of construction. Gyprock Shaft Liner MP Panel can be identified by its blue coloured face paper.

Gyprock Shaft Liner MP is available in the following sizes:
Thickness: 25mm
Widths: 600mm
Lengths: 3000mm, 3600mm
Edge Profiles: Square Edge for applications not requiring jointing

Manufacturing Tolerances:
Nominal Thickness: 25mm ± 0.5mm
Nominal Widths: 600mm ± 3mm
Nominal Lengths: From 3000mm and 3600 ± 5mm
Squareness: Cut ends ± 3mm in the width of the board

Physical Properties:
Nominal Board Weight*: 19.8kg/m2
Thermal Resistance: 0.14 m2K/W
Fire Hazard Properties∆: Group No = 1
SMOGRARC <100 m2/s2
Combustibility◊: Plasterboard may be used wherever a non-combustible material is required.
Total Recycled Content°: 9.3%

* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).
° This plasterboard may require extra processing when recycling due to the presence of glass fibre mesh material.

Key Features:
Australian Made: Licensed by Australian Made Campaign Ltd
Powerful Antifungal Agent: Resists mould and mildew
Fire Resistance: Resists mould and mildew
Acoustic Properties: Helps combat sound transmission

Commercial Installation Guide

Design considerations and installation instructions.

Download Guide
Product Data Sheet
Safety Data Sheet

Typical Applications

 Shaft Liner MP is predominantly specified for the internal barrier lining within Gyprock fire and/or acoustic wall and ceiling systems such as Party Wall Systems.

Typical applications include:

  • Intertenancy walls and party walls
  • Multi-residential unit ceilings
  • Stairwells
  • Lift wells
  • Service shafts

More information about fire solutions can be found under Solutions.
