Name: Cemintel Edge® Cladding
Brand: CSR Cemintel
SKU: 454471
Availability: InStock

Vertical joint (VJ) cladding panels with a ship-lap edge, available in four groove styles: Bond (75mm V-groove), Oxford (150mm V-groove), Ribbon (150mm U-groove) and Crown (400mm V-groove). Panels are 9mm thick and 1200mm wide to suit 600mm stud spacing, and can be gun- or hand-nailed to timber or screwed to steel frames.

Product Code: 454471

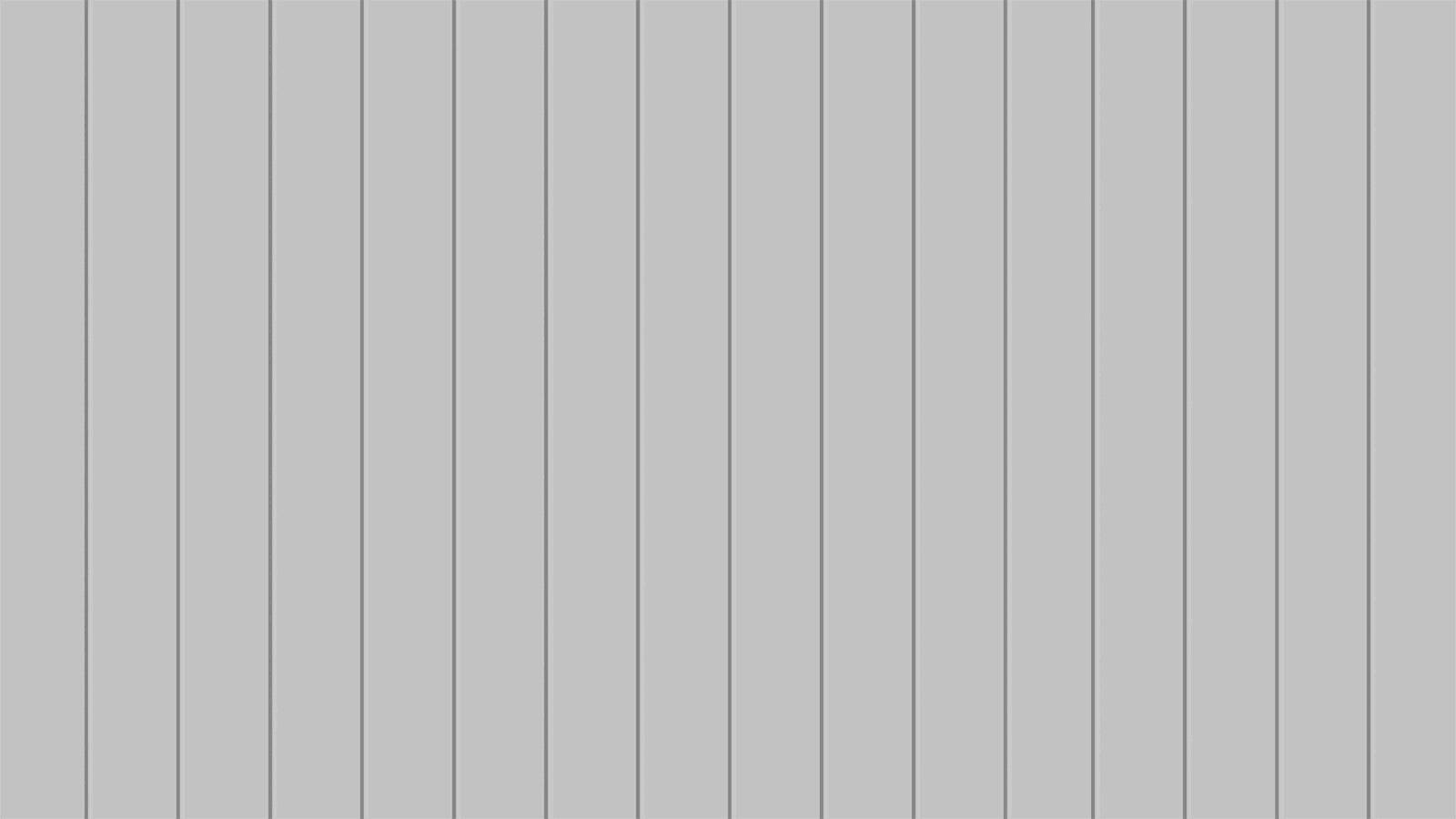

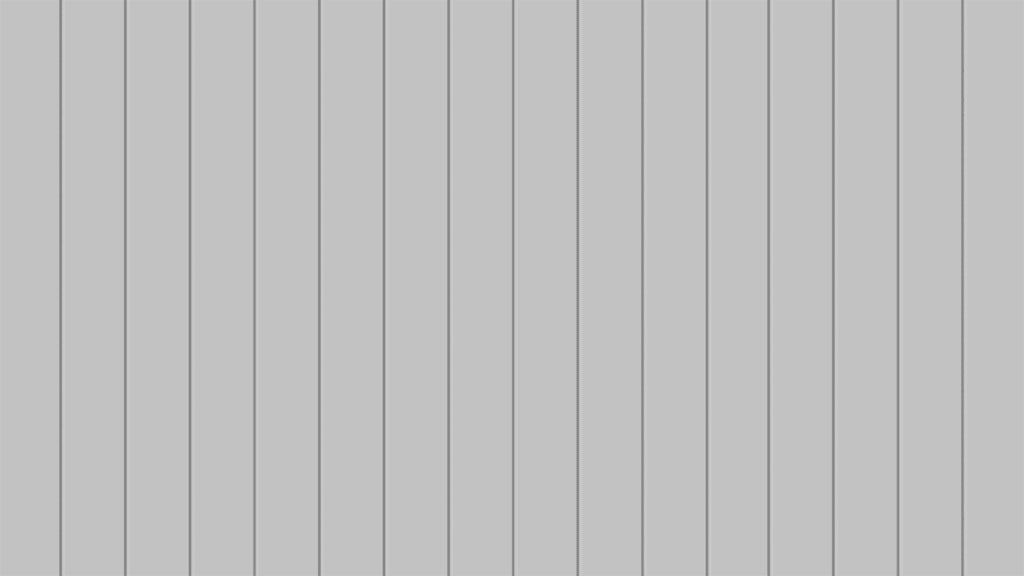

Web Description: Edge Cladding Bond 75mm
Width(mm): 1200
Length(mm): 2450
Thickness(mm): 9
Surface Texture: Smooth
Finish: Preprimed
Groove Type: V-Groove
Groove Spacing (mm): 75
Effective Cover Per Unit (m2): 2.94
Effective Width (mm): 1200
Mass (kg/m2): 12
Weight Per Unit: 35.28
Product Warranty (Years): 10
BAL: BAL-29

Product Code: 454504
Web Description: Edge Cladding Bond 75mm
Width(mm): 1200
Length(mm): 2750
Thickness(mm): 9
Surface Texture: Smooth
Finish: Preprimed
Groove Type: V-Groove
Groove Spacing (mm): 75
Effective Cover Per Unit (m2): 3.3
Effective Width (mm): 1200
Mass (kg/m2): 12
Weight Per Unit: 39.6
Product Warranty (Years): 10
BAL: BAL-29

Product Code: 454474
Web Description: Edge Cladding Bond 75mm
Width(mm): 1200
Length(mm): 3000
Thickness(mm): 9
Surface Texture: Smooth
Finish: Preprimed
Groove Type: V-Groove
Groove Spacing (mm): 75
Effective Cover Per Unit (m2): 3.6
Effective Width (mm): 1200
Mass (kg/m2): 12
Weight Per Unit: 43.2
Product Warranty (Years): 10
BAL: BAL-29

Product Code: 454475

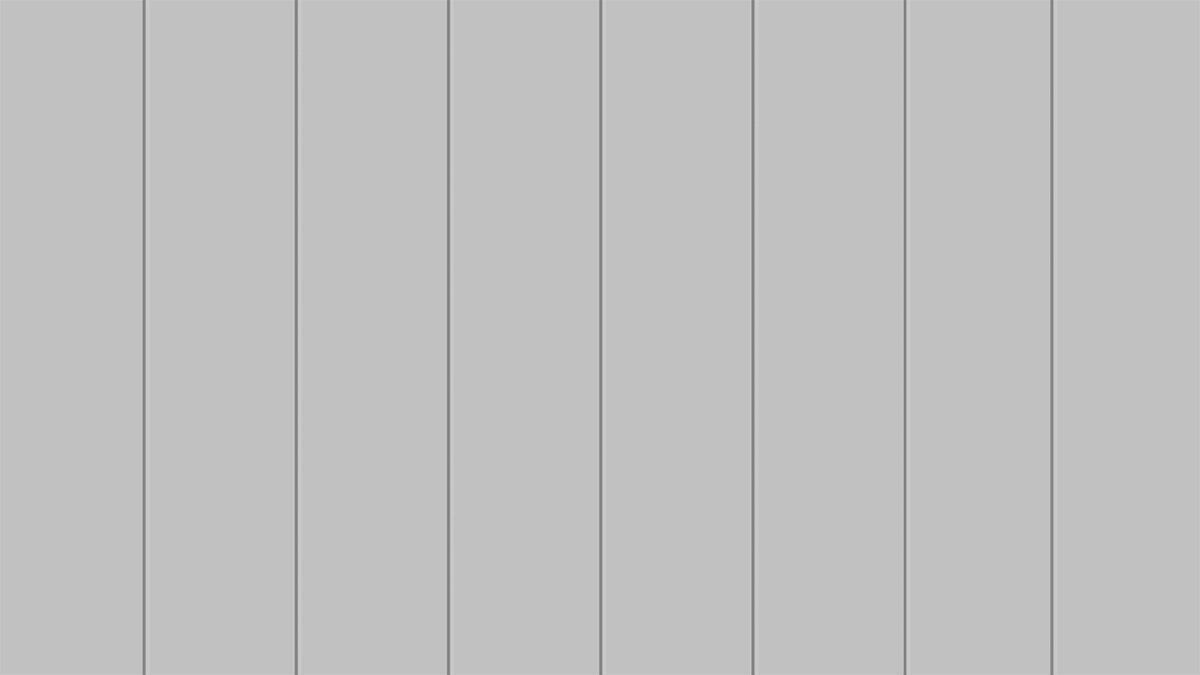

Web Description: Edge Cladding Oxford 150mm
Width(mm): 1200
Length(mm): 2450
Thickness(mm): 9
Surface Texture: Smooth
Finish: Preprimed
Groove Type: V-Groove
Groove Spacing (mm): 150
Effective Cover Per Unit (m2): 2.94
Effective Width (mm): 1200
Mass (kg/m2): 12
Weight Per Unit: 35.28
Product Warranty (Years): 10
BAL: BAL-29

Product Code: 454476
Web Description: Edge Cladding Oxford 150mm
Width(mm): 1200
Length(mm): 2750
Thickness(mm): 9
Surface Texture: Smooth
Finish: Preprimed
Groove Type: V-Groove
Groove Spacing (mm): 150
Effective Cover Per Unit (m2): 3.3
Effective Width (mm): 1200
Mass (kg/m2): 12
Weight Per Unit: 39.6
Product Warranty (Years): 10
BAL: BAL-29

Product Code: 454477
Web Description: Edge Cladding Oxford 150mm
Width(mm): 1200
Length(mm): 3000
Thickness(mm): 9
Surface Texture: Smooth
Finish: Preprimed
Groove Type: V-Groove
Groove Spacing (mm): 150
Effective Cover Per Unit (m2): 3.6
Effective Width (mm): 1200
Mass (kg/m2): 12
Weight Per Unit: 43.2
Product Warranty (Years): 10
BAL: BAL-29

Product Code: 115654
Web Description: Edge Cladding Ribbon 150mm
Width(mm): 1200
Length(mm): 2450
Thickness(mm): 9
Surface Texture: Smooth
Finish: Preprimed
Groove Type: U-Groove
Groove Spacing (mm): 150
Effective Cover Per Unit (m2): 2.94
Effective Width (mm): 1200
Mass (kg/m2): 12
Weight Per Unit: 35.28
Product Warranty (Years): 10
BAL: BAL-29

Product Code: 115655
Web Description: Edge Cladding Ribbon 150mm
Width(mm): 1200
Length(mm): 2750
Thickness(mm): 9
Surface Texture: Smooth
Finish: Preprimed
Groove Type: U-Groove
Groove Spacing (mm): 150
Effective Cover Per Unit (m2): 3.3
Effective Width (mm): 1200
Mass (kg/m2): 12
Weight Per Unit: 39.6
Product Warranty (Years): 10
BAL: BAL-29

Product Code: 115656
Web Description: Edge Cladding Ribbon 150mm
Width(mm): 1200
Length(mm): 3000
Thickness(mm): 9
Surface Texture: Smooth
Finish: Preprimed
Groove Type: U-Groove
Groove Spacing (mm): 150
Effective Cover Per Unit (m2): 3.6
Effective Width (mm): 1200
Mass (kg/m2): 12
Weight Per Unit: 43.2
Product Warranty (Years): 10
BAL: BAL-29

Product Code: 454501

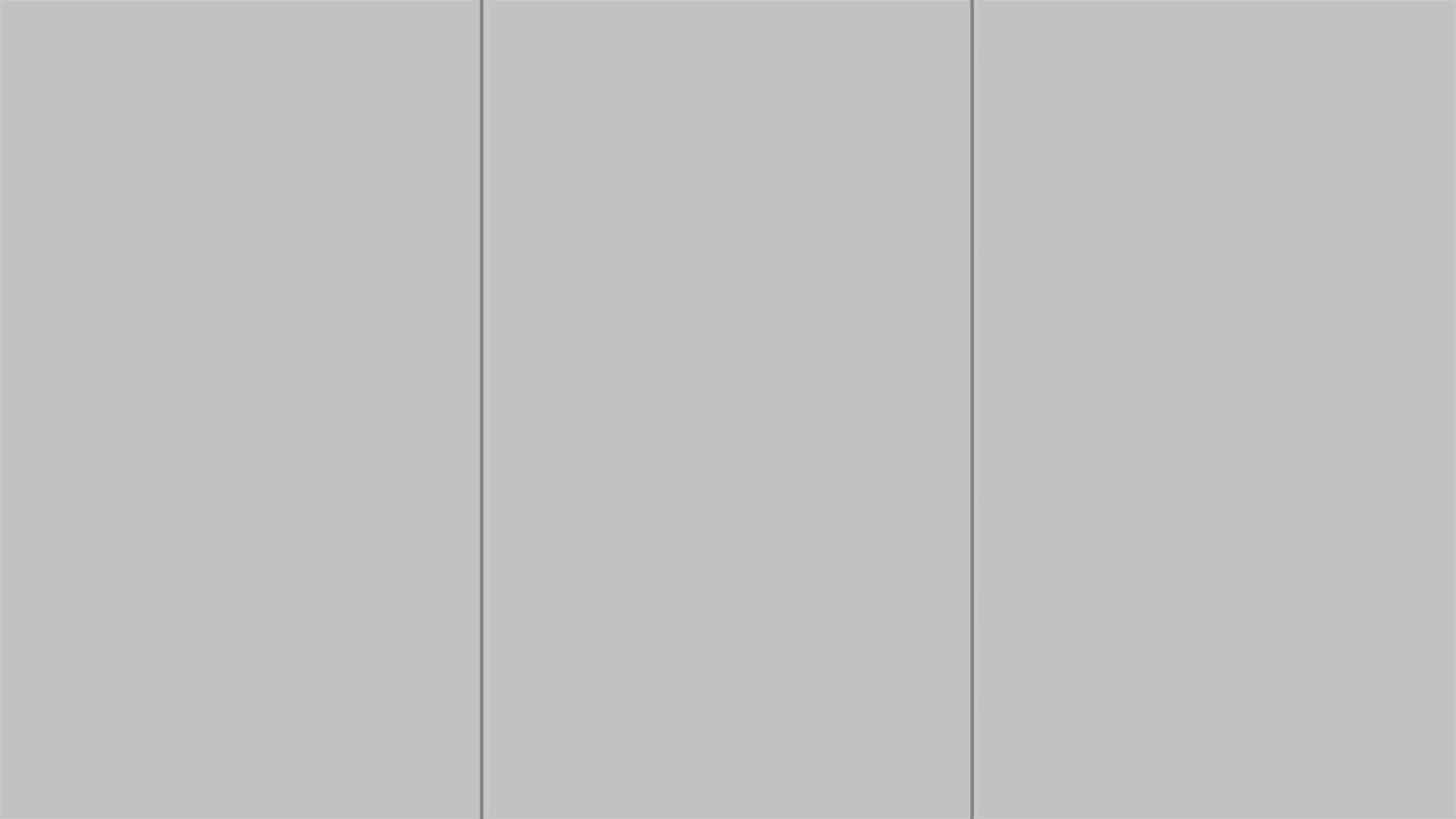

Web Description: Edge Cladding Crown 400mm
Width(mm): 1200
Length(mm): 2450
Thickness(mm): 9
Surface Texture: Smooth
Finish: Preprimed
Groove Type: V-Groove
Groove Spacing (mm): 400
Effective Cover Per Unit (m2): 2.94
Effective Width (mm): 1200
Mass (kg/m2): 12
Weight Per Unit: 35.28
Product Warranty (Years): 10
BAL: BAL-29

Product Code: 454502
Web Description: Edge Cladding Crown 400mm
Width(mm): 1200
Length(mm): 2750
Thickness(mm): 9
Surface Texture: Smooth
Finish: Preprimed
Groove Type: V-Groove
Groove Spacing (mm): 400
Effective Cover Per Unit (m2): 3.3
Effective Width (mm): 1200
Mass (kg/m2): 12
Weight Per Unit: 39.6
Product Warranty (Years): 10
BAL: BAL-29

Product Code: 454503
Web Description: Edge Cladding Crown 400mm
Width(mm): 1200
Length(mm): 3000
Thickness(mm): 9
Surface Texture: Smooth
Finish: Preprimed
Groove Type: V-Groove
Groove Spacing (mm): 400
Effective Cover Per Unit (m2): 3.6
Effective Width (mm): 1200
Mass (kg/m2): 12
Weight Per Unit: 43.2
Product Warranty (Years): 10
BAL: BAL-29

Technical Resources

Warranty - Edge Claddin
Warranty - Cemintel Trims
Safety Data Sheet - Fibre Cement
Fire Performance Report - Fibre Cement Cladding
Design & Installation Guide - Edge and SimpleLine Cladding
Design & Installation Guide - Facades and Cladding
Design & Installation Guide - Cavity Wall Cladding Systems
Flyer - Cemintel Trims
Brochure - Streetstyle
Technical Data Sheet - Edge Cladding
BIM File - Edge Cladding

Edge Cladding Installation

Edge Cladding sheets are 9mm thick, 1200mm wide, to suit 600mm stud spacing. They come in 2450, 2750 or 3000 mm lengths to suit common wall heights. That means fewer cuts and less waste. Fix them directly to stud frames by hand or gun-nailing to timber, Or screw them to light gauge steel frames.

Cavity fixing to timber or fibre cement battens is also an option.

Edge cladding panels can also be installed horizontally. This creates a different horizontal shiplap look. It also creates a challenge where the short ends of the panels need to be butted together, which isn’t a seamless look. One option is to cover the short end joints with vertical battens.

The Cemintel fibre cement used in Edge Cladding is deemed suitable for use in applications where non-combustible materials are specified. As per the National Construction Code Volume One clause C2D1 Deemed-to-Satisfy Provisions (6) (d).

Edge VJ Cladding panels are suitable for Bushfire Attack Levels up to BAL-29 when constructed in accordance with Australian Standards AS3959. External walls in bushfire zones can be upgraded to BAL-FZ when part of a fire rated plasterboard wall system.
