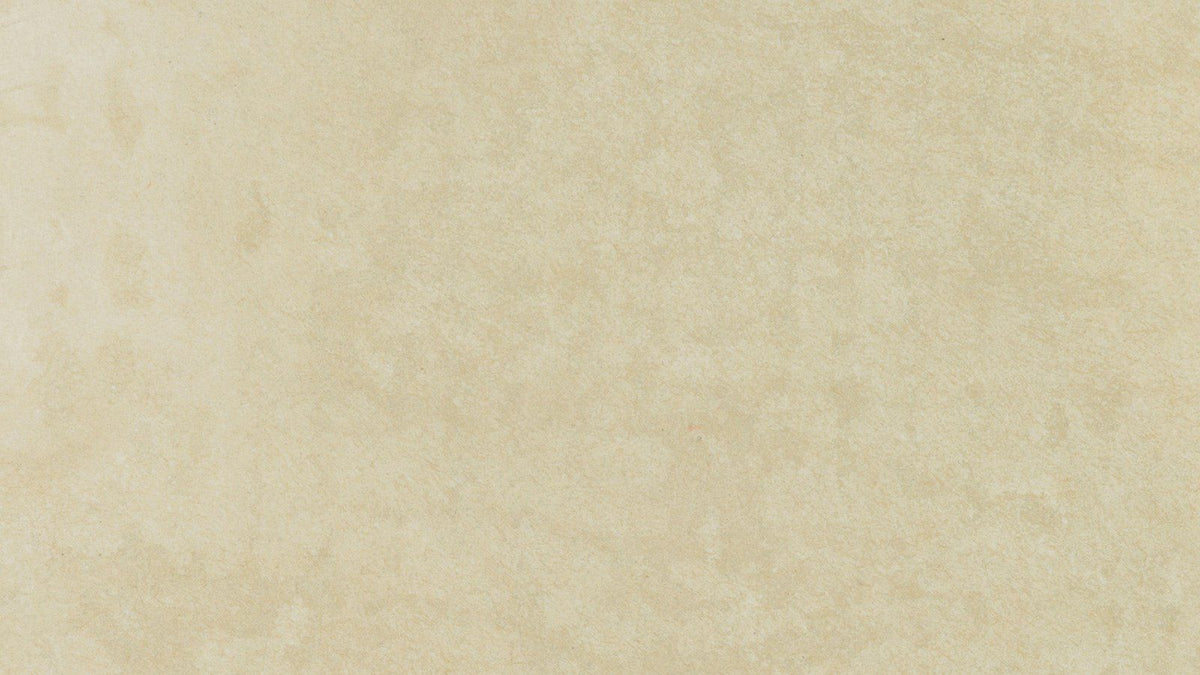

Name: Cemintel Cladding Sheet
Brand: CSR Cemintel
SKU: 10207
Availability: InStock

A traditional square-edged, unprimed fibre cement sheet in 4.5mm and 6mm thicknesses, used for external walls, gables and oversized eaves. Joints can be covered with timber battens, Cemintel Trims or PVC cover strips for a board-and-batten look.

Product Code: 10207
Web Description: Cladding Sheet
Width(mm): 900
Length(mm): 1800
Thickness(mm): 4.5
Surface Texture: Smooth
Finish: Unprimed
Groove Spacing (mm): n/a
Effective Cover Per Unit (m2): 1.62
Effective Width (mm): 900
Mass (kg/m2): 7.3
Weight Per Unit: 11.83
Product Warranty (Years): 25
BAL: BAL-29

Product Code: 10208
Web Description: Cladding Sheet
Width(mm): 900
Length(mm): 2400
Thickness(mm): 4.5
Surface Texture: Smooth
Finish: Unprimed
Groove Spacing (mm): n/a
Effective Cover Per Unit (m2): 2.16
Effective Width (mm): 900
Mass (kg/m2): 7.3
Weight Per Unit: 15.77
Product Warranty (Years): 25
BAL: BAL-29

Product Code: 10211
Web Description: Cladding Sheet
Width(mm): 1200
Length(mm): 1800
Thickness(mm): 4.5
Surface Texture: Smooth
Finish: Unprimed
Groove Spacing (mm): n/a
Effective Cover Per Unit (m2): 2.16
Effective Width (mm): 1200
Mass (kg/m2): 7.3
Weight Per Unit: 15.77
Product Warranty (Years): 25
BAL: BAL-29

Product Code: 10213
Web Description: Cladding Sheet
Width(mm): 1200
Length(mm): 2400
Thickness(mm): 4.5
Surface Texture: Smooth
Finish: Unprimed
Groove Spacing (mm): n/a
Effective Cover Per Unit (m2): 2.88
Effective Width (mm): 1200
Mass (kg/m2): 7.3
Weight Per Unit: 21.02
Product Warranty (Years): 25
BAL: BAL-29

Product Code: 10214
Web Description: Cladding Sheet
Width(mm): 1200
Length(mm): 2700
Thickness(mm): 4.5
Surface Texture: Smooth
Finish: Unprimed
Groove Spacing (mm): n/a
Effective Cover Per Unit (m2): 3.24
Effective Width (mm): 1200
Mass (kg/m2): 7.3
Weight Per Unit: 23.65
Product Warranty (Years): 25
BAL: BAL-29

Product Code: 10215
Web Description: Cladding Sheet
Width(mm): 1200
Length(mm): 3000
Thickness(mm): 4.5
Surface Texture: Smooth
Finish: Unprimed
Groove Spacing (mm): n/a
Effective Cover Per Unit (m2): 3.6
Effective Width (mm): 1200
Mass (kg/m2): 7.3
Weight Per Unit: 26.28
Product Warranty (Years): 25
BAL: BAL-29

Product Code: 10198
Web Description: Cladding Sheet
Width(mm): 900
Length(mm): 2400
Thickness(mm): 6
Surface Texture: Smooth
Finish: Unprimed
Groove Spacing (mm): n/a
Effective Cover Per Unit (m2): 2.16
Effective Width (mm): 900
Mass (kg/m2): 10
Weight Per Unit: 21.6
Product Warranty (Years): 25
BAL: BAL-40

Product Code: 10202
Web Description: Cladding Sheet
Width(mm): 1200
Length(mm): 1800
Thickness(mm): 6
Surface Texture: Smooth
Finish: Unprimed
Groove Spacing (mm): n/a
Effective Cover Per Unit (m2): 2.16
Effective Width (mm): 1200
Mass (kg/m2): 10
Weight Per Unit: 21.6
Product Warranty (Years): 25
BAL: BAL-40

Product Code: 10203
Web Description: Cladding Sheet
Width(mm): 1200
Length(mm): 2400
Thickness(mm): 6
Surface Texture: Smooth
Finish: Unprimed
Groove Spacing (mm): n/a
Effective Cover Per Unit (m2): 2.88
Effective Width (mm): 1200
Mass (kg/m2): 10
Weight Per Unit: 28.8
Product Warranty (Years): 25
BAL: BAL-40

Product Code: 10205
Web Description: Cladding Sheet
Width(mm): 1200
Length(mm): 2700
Thickness(mm): 6
Surface Texture: Smooth
Finish: Unprimed
Groove Spacing (mm): n/a
Effective Cover Per Unit (m2): 3.24
Effective Width (mm): 1200
Mass (kg/m2): 10
Weight Per Unit: 32.4
Product Warranty (Years): 25
BAL: BAL-40

Product Code: 10206
Web Description: Cladding Sheet
Width(mm): 1200
Length(mm): 3000
Thickness(mm): 6
Surface Texture: Smooth
Finish: Unprimed
Groove Spacing (mm): n/a
Effective Cover Per Unit (m2): 3.6
Effective Width (mm): 1200
Mass (kg/m2): 10
Weight Per Unit: 36
Product Warranty (Years): 25
BAL: BAL-40

Key Features:
A lightweight panel solution in a simple and traditional form.
Fast to install with traditional nail-on-frame methods.
Resistant to permanent water damage.
Fibre cement cladding is resistant to termite attack.

Technical Resources

Warranty - Cladding Sheet
Safety Data Sheet - Fibre Cement
BIM File - Cladding Sheet
Fire Performance Report - Fibre Cement Cladding
Design & Installation Guide - Facades and Cladding
Design & Installation Guide - External Cladding and Eaves Lining Sheet
Design & Installation Guide - Cavity Wall Cladding Systems
Technical Data Sheet - Cladding Sheet

Cladding Sheet installation.

The cladding products come in 900mm widths to suit 450mm wall stud centres. Or 1200mm wide sheets to span a maximum of 600mm stud centres. They come in a variety of lengths from 1800mm up to 3000mm to reduce waste.

Direct Fix: The external cladding can only be nailed onto timber frames.
When used for ceilings and eaves the fibre cement panels must be screw fixed.
Cavity Fix: Use cavity construction with fibre cement battens or timber battens to install onto timber frames or steel frames for better ventilation and drainage behind the sheets.

*Bushfire Attack Levels can be achieved when the external cladding system is constructed in accordance with Australian Standard AS3959 requirements.
